CIPI, s.r.o. is also active in the segment glazed structures with aluminium frame profiles. These structures have always belonged to characteristic elements of a building. They create their appearance, function and were formed during long history. They reflect the nature of an era, culture, geographical location, fashion trends, and they significantly form the architectural design. Currently, we can offer glazed structures of windows, doors, skylights and glazed facades with a timeless interior and exterior design by system suppliers such as WICONA, ALIPLAST which meet the strictest criteria and norms.
Glazed structures have always belonged to characteristic elements of a building. They give buildings their appearance, function and were formed in the long history and various artistic styles. They reflect the nature of a period, culture, geographical location, fashion trends, and they significantly form an architectural project. It could be said that windows reflect a historical period and social status of people. Windows interconnect the interior with the exterior, thus influencing our everyday life, feelings and improving our housing. At present, glazed structures have not only aesthetic properties, but they must meet mainly high performance requirements. Basic features such as ventilation and lighting are now complemented by thermal insulation properties, noise-related parameters, burglar alarms, fire safety, and can be controlled electrically. At present, we are working on continuous improving and, in the future, glazed structures will play a significant role in architecture and people’s lives. We can offer timeless glazed structures of windows, doors and glass facades by system suppliers such as WICONA, ALIPLAST which meet the strictest criteria.
This product group includes all types of facade structures in the exterior and the interior environments, including a full range of openable elements offering system solutions. These products can be controlled mechanically as well as electrically. The products themselves can be in the anti-burglar security classes according to STN. We supply the following types of aluminium glazed facades: profile curtain wall facades, curtain-type facades and structural facades. Including a full range of embedded openable elements and sliding doors. We offer the WICONA, ALIPLAST profile systems.
This product group includes all types of window frames and doors for exterior or interior design. We currently offer a full range of openable elements which offer system solutions including smoke and heat exhaust ventilation. These products can be controlled mechanically as well as electrically. The products themselves can be in the anti-burglar security classes according to STN. We offer the WICONA, ALIPLAST profile systems.
Atypical structures include skylights, marquises, conservatories, partitions including openable and slide elements. We offer the WICONA, ALIPLAST profile systems.
We offer different types of skylight structures:
We can offer our customers roof windows including smoke and heat extraction systems for these skylights.
Glazed structures have always belonged to characteristic elements of a building. They give buildings their appearance, function and were formed in the long history and various artistic styles. They reflect the nature of a period, culture, geographical location, fashion trends, and they significantly form an architectural project. It could be said that windows reflect a historical period and social status of people. Windows interconnect the interior with the exterior, thus influencing our everyday life, feelings and improving our housing. At present, glazed structures have not only aesthetic properties, but they must meet mainly high performance requirements. Basic features such as ventilation and lighting are now complemented by thermal insulation properties, noise-related parameters, burglar alarms, fire safety, and can be controlled electrically. At present, we are working on continuous improving and, in the future, glazed structures will play a significant role in architecture and people’s lives. We can offer timeless glazed structures of windows, doors and glass facades by system suppliers such as WICONA, ALIPLAST which meet the strictest criteria.
This product group includes all types of facade structures in the exterior and the interior environments, including a full range of openable elements offering system solutions. These products can be controlled mechanically as well as electrically. The products themselves can be in the anti-burglar security classes according to STN. We supply the following types of aluminium glazed facades: profile curtain wall facades, curtain-type facades and structural facades. Including a full range of embedded openable elements and sliding doors. We offer the WICONA, ALIPLAST profile systems.

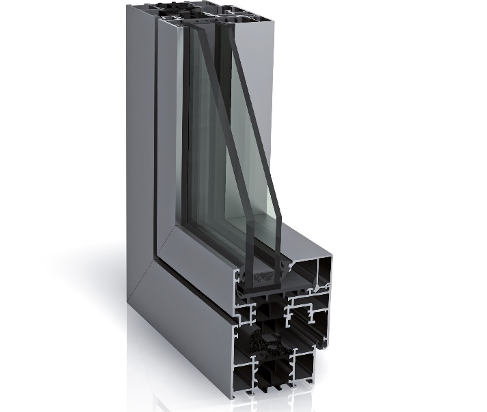

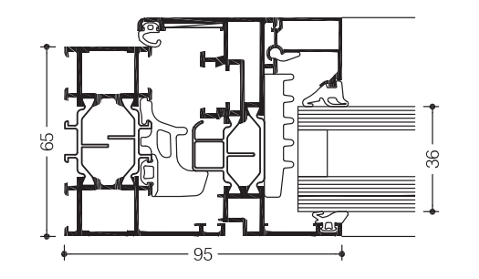

Prečo WICONA? Pretože ako úspešná spoločnosť zaoberajúca sa hliníkovými systémami so sídlom v Nemecku, má spoločnosť WICONA viac ako 70-ročné skúsenosti – skúsenosti, z ktorých môžete ťažiť každý deň.
Vďaka najmodernejšej technológii a komplexnej ponuke profilov je hliníkové okno WICLINE 65 evo dokonalým univerzálnym prostriedkom so všestranným spektrom použitia. Použitím konštrukčnej hĺbky iba 65 mm tento systém spĺňa vysoké štandardy požadované pre tepelnú a zvukovú izoláciu. WICLINE 65 evo ponúka veľmi atraktívny pomer cena / výkon.
Technológia profilov:
Kovanie:
Kovanie pre vysoké zaťaženie:
Hmotnosť krídla:
Max. veľkosť krídla (š x v): 1700mm x 2500mm, sklopka 2500mm x 1700mm.
Voliteľne s obmedzovačom otvárania
Tepelná izolácia:
Koncept tesnenia:
Objemné stredové tesnenie s tromi spôsobmi inštalácie:
Dodatočné možnosti:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

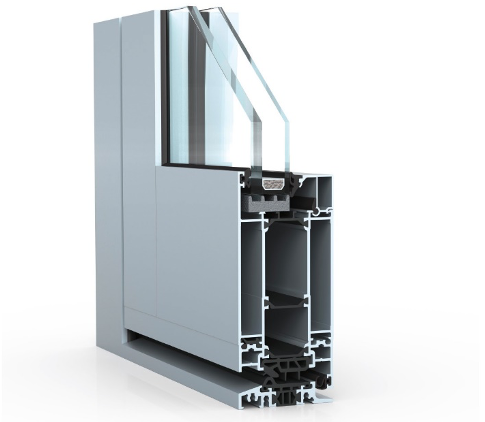

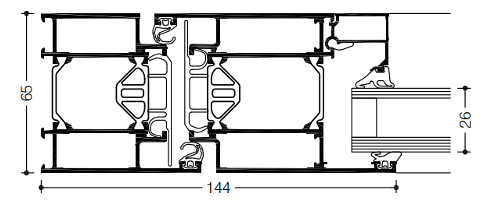

WICSTYLE 65 evo s dizajnom zalícovaného krídla v hĺbke systému 65 mm a komplexným rozsahom použitia je dokonale kvalifikovaný pre najvyššie požiadavky na dizajn, technologickú kvalitu a výkon. Vďaka svojmu priaznivému pomeru cena / výkon predstavuje ekonomické riešenie hliníkových dverí pre takmer každú požiadavku.
Technológia profilov:
Kovanie:
Dodatočné možnosti:
Vzduchotesnosť | trieda 4 |
---|---|
Odolnosť proti hnanému dažďu | až do 7A |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

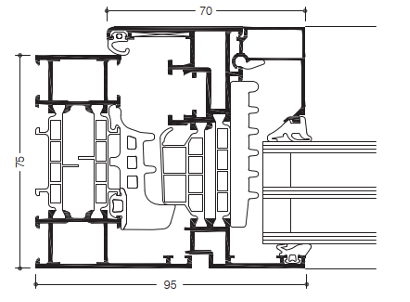

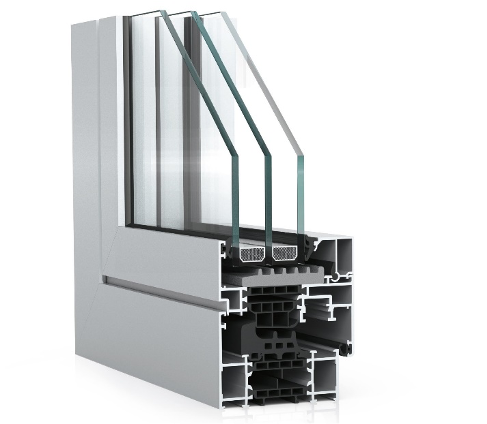

S hĺbkou profilu 75 mm sa WICLINE 75 evo vyznačuje najvyššími tepelnoizolačnými a konštrukčnými vlastnosťami. Vďaka vynikajúcemu technickému výkonu je toto hliníkové okno prispôsobené všetkým architektonickým požiadavkám budúcnosti. Vo Švajčiarsku bol WICLINE 75 evo prvým kovovým oknom, ktoré bolo certifikované ako okno modulu Minergie-P.
Technológia profilov:
Kovanie:
Kovanie pre vysoké zaťaženie:
Hmotnosť krídla:
Max. veľkosť krídla (š x v): 1700mm x 2500mm, sklopka 2500mm x 1700mm.
Voliteľne s obmedzovačom otvárania
Tepelná izolácia:
Koncept tesnenia:
Objemné stredové tesnenie s tromi spôsobmi inštalácie:
Dodatočné možnosti:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

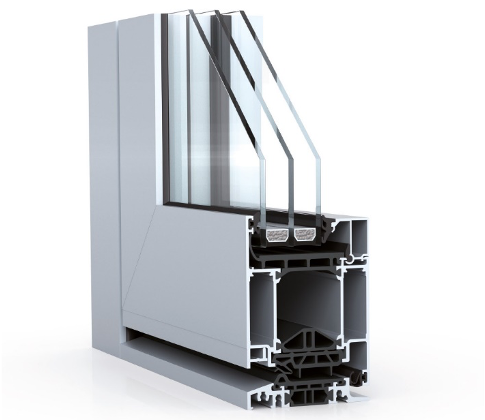

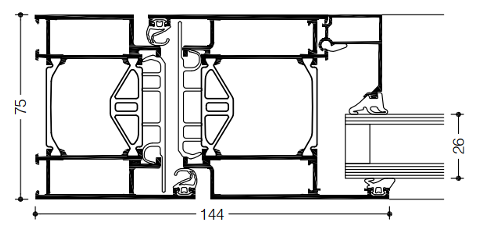

S hĺbkou profilu 75 mm sa WICSTYLE 75 evo posúva vpred v oblasti tepelnej izolácie a fyzikálnych vlastností. Jeho vynikajúci technický výkon a rozsah použitia z neho robia ideálne riešenie dverných konštrukcií pre všetky súčasné a budúce požiadavky v architektúre, ako v novostavbách, tak aj v renováciách.
Technológia profilov:
Kovanie:
Dodatočné možnosti:
Vzduchotesnosť | trieda 4 |
---|---|
Odolnosť proti hnanému dažďu | až do 7A |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

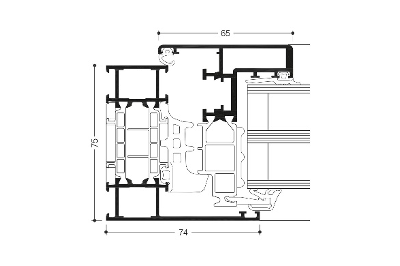

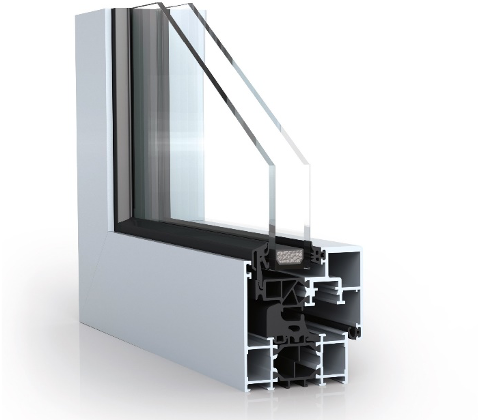

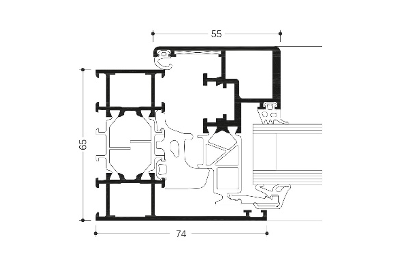

Možnosť „skryté krídlo“ v hliníkovom okennom systéme WICLINE evo sa vyznačuje špeciálnou zasklievacou lištou pripevnenou priamo v zóne tepelného prerušenia. Výsledkom je, že systém dosahuje extrémne tenké prevýšenie rámu, vynikajúce tepelnoizolačné hodnoty a zvonka elegantný profilový dizajn. Vylepšený pomer medzi povrchom rámu a zasklením vedie k veľmi dobrým hodnotám Uw, k zvýšenému prenosu svetla a panoramatickým výhľadom.
Technológia profilov:
Kovanie:
Kovanie pre vysoké zaťaženie:
Hmotnosť krídla:
Max. veľkosť krídla (š x v): 1700mm x 2500mm, sklopka 2500mm x 1700mm.
Voliteľne s obmedzovačom otvárania
Tepelná izolácia:
Koncept tesnenia:
Objemné stredové tesnenie s tromi spôsobmi inštalácie:
Dodatočné možnosti:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

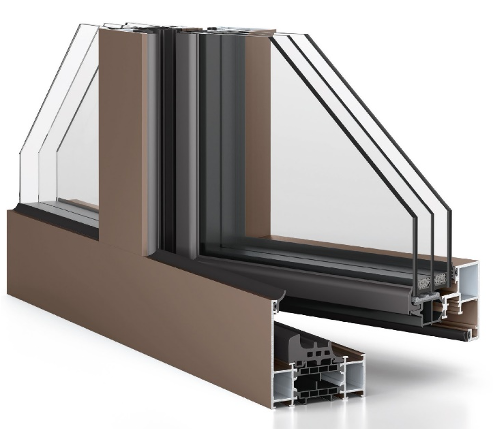

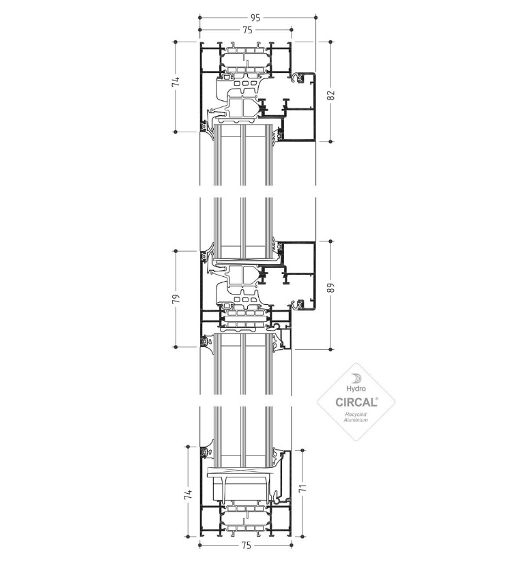

Nové skryté krídlo WICLINE 75 MAX maže rozdiel medzi otváracím a pevným poľom z vonkajšej strany. Skryté pánty a kovanie, ako aj nová skrytá kľučka, zaisťujú čisté, neprerušované línie, a to aj zvnútra.
„MAX“ znamená špičkovú inováciu a trojité výkonové spektrum harmonického vzhľadu, väčšej svetlosti a komfortu a systému pozostávajúceho z vysoko recyklovaného obsah. Kľučka okna je skrytá v krídle a zvýrazňuje harmonický vzhľad okna.
Technológia profilov:
Kovanie:
Kovanie pre vysoké zaťaženie:
Hmotnosť krídla:
Max. veľkosť krídla (š x v): 1400mm x 2250mm, sklopka 2500mm x 1700mm.
Voliteľne s obmedzovačom otvárania
Skrytá WICONA kľučka:
Tepelná izolácia:
Koncept tesnenia:
Objemné stredové tesnenie s tromi spôsobmi inštalácie:
Dodatočné možnosti:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

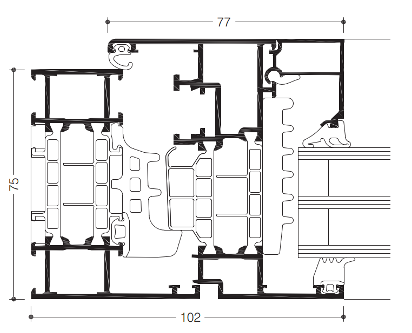

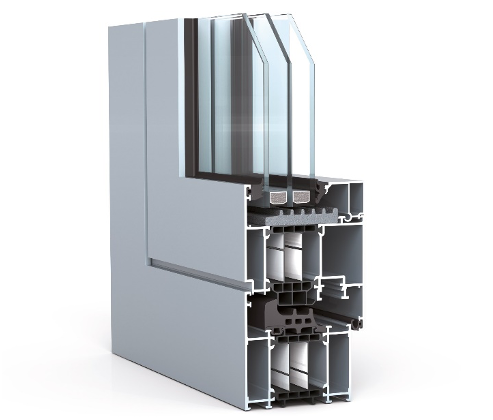

WICLINE 75 TOP je vysoko tepelne izolačný okenný systém s optimálnym výkonom, spoľahlivou výrobou a výkonovými parametrami na úrovni pasívnych domov – s hĺbkou profilu iba 75 mm.
Technológia profilov:
Kovanie:
Kovanie pre vysoké zaťaženie:
Hmotnosť krídla:
Max. veľkosť krídla (š x v): 1700mm x 2500mm, sklopka 2500mm x 1700mm.
Voliteľne s obmedzovačom otvárania
Tepelná izolácia:
Koncept tesnenia:
Objemné stredové tesnenie s tromi spôsobmi inštalácie:
Dodatočné možnosti:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

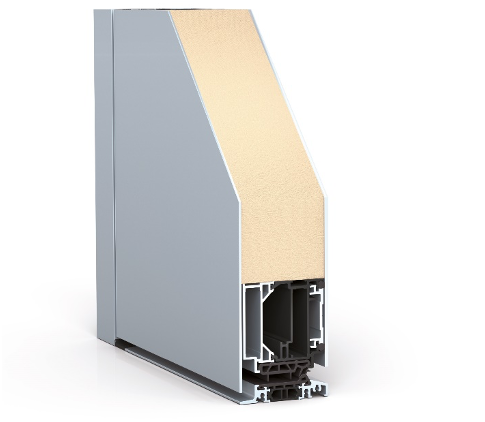

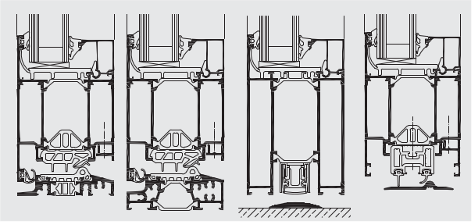

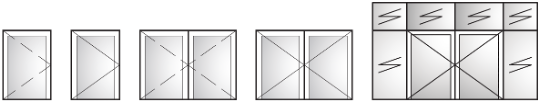

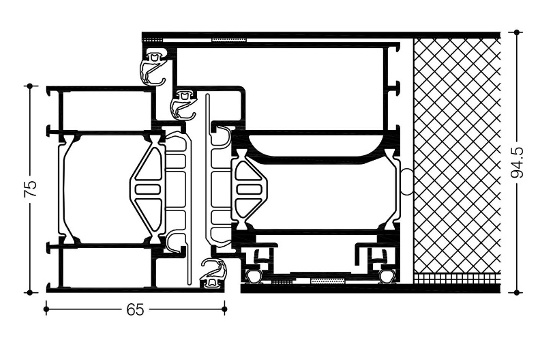

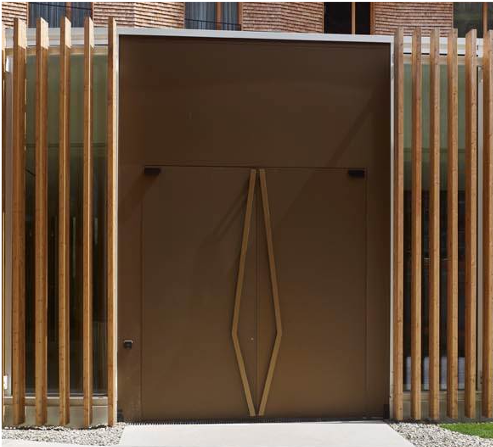

Kompletný systém jednokrídlových a dvojkrídlových panelových dverí s inovatívnym patentovaným riešením redukcie deformácie dverného krídla na minimum pri bimetalickom efekte, ktoré spĺňajú najvyššie požiadavky na dizajn a energetickú účinnosť.
Technológia profilov:
Tepelná izolácia:
Kovanie:
Vzduchotesnosť | trieda 4 |
---|---|
Odolnosť proti hnanému dažďu | až do 7A |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

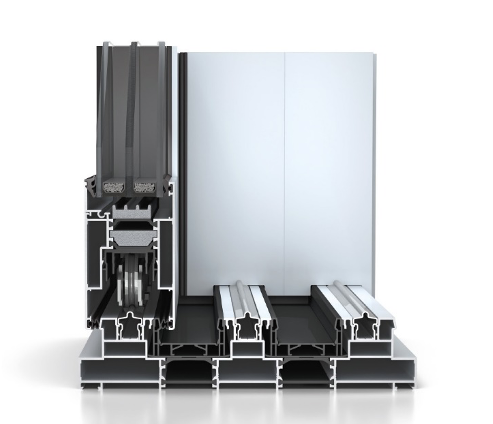

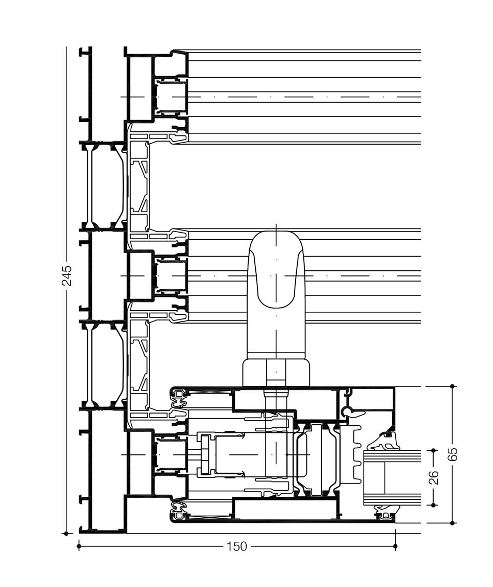

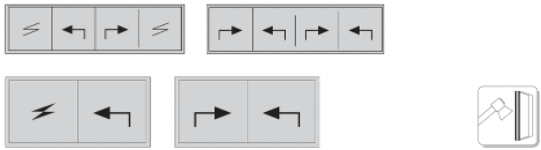

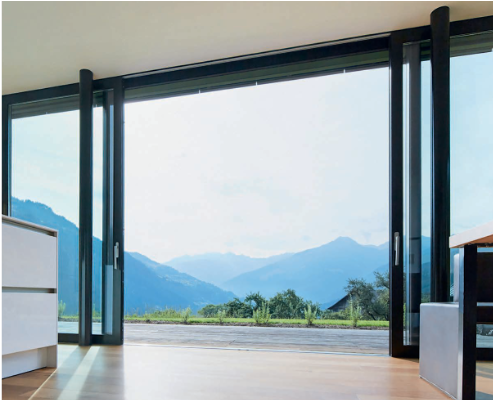

Zdvižno-posuvný systém WICSLIDE 160 kombinuje vynikajúcu tepelnú izoláciu s najvyššou funkčnosťou a dizajnom. Pôsobivé rozmery krídla a trvalý komfort obsluhy sú vašimi zárukami pre maximálnu spokojnosť. Vďaka najmodernejšej technológii a inovatívnym výhodám vo výrobe je WICSLIDE 160 high-tech produkt, ktorý určuje nové štandardy.
Technológia profilov:
Tepelná izolácia:
Kovanie:
Dodatočné možnosti:
Vzduchotesnosť | trieda 4 |
---|---|
Odolnosť proti hnanému dažďu | až do 7A |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

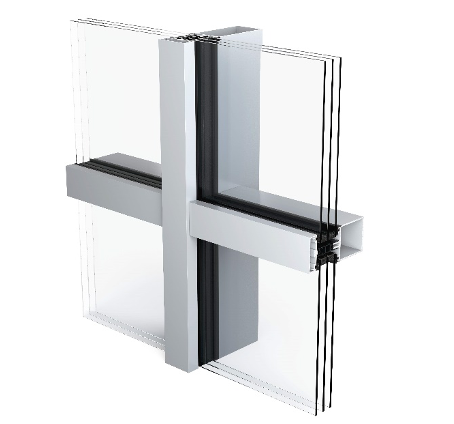

WICTEC 50 je základná verzia fasádneho systému s mimoriadne úzkou pohľadovou šírkou 50 mm z vnútornej aj vonkajšej strany. Jedinečnú flexibilitu demonštrujú rôzne varianty systému a možnosti vylepšenia, ktoré sú všetky možné s malými doplnkami základného systému a bez kompromisov týkajúcich sa vzhľadu.
systémová šírka: 50mm
systémová hĺbka štandard: 50mm až 260mm
tepelná izolácia: Uf hodnota až do 0,7 W/(m2K)
hrúbka výplne: 3mm až 63mm
polygonálna fasáda: až do ±45°
váha skla: až do 5,6kN
Technológia systému:
Dodatočné možnosti v identickom dizajne a technickom usporiadaní:
Vzduchotesnosť | trieda AE |
---|---|
Vodotesnosť | EW 1200 |
Odolnosť proti zaťaženiu vetrom | 2000/-3200 Pa, bezp. 3000/-4800 Pa |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči nárazu | trieda E5 /I5 |
Odolnosť voči vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 |
Vyššie uvedené hodnoty zodpovedajú systémovým skúškam a CE certifikátom v súlade s DIN EN 14351-1:2006+A1:2010

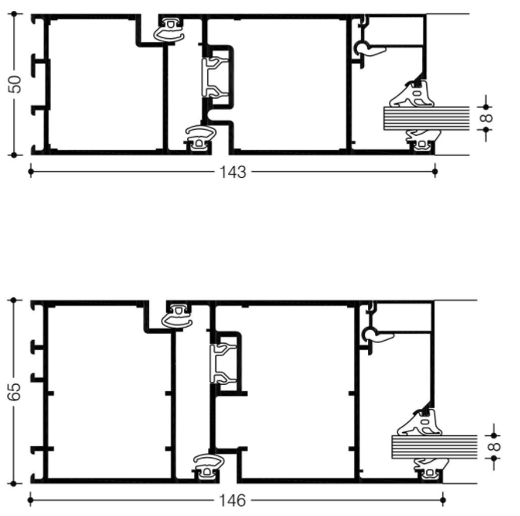

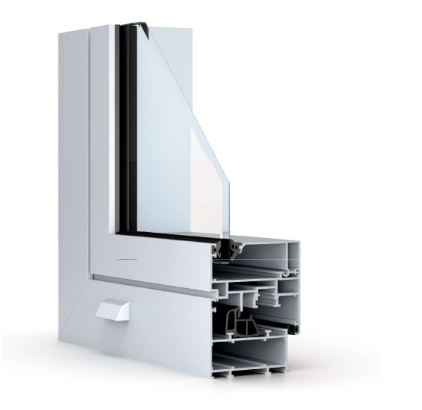

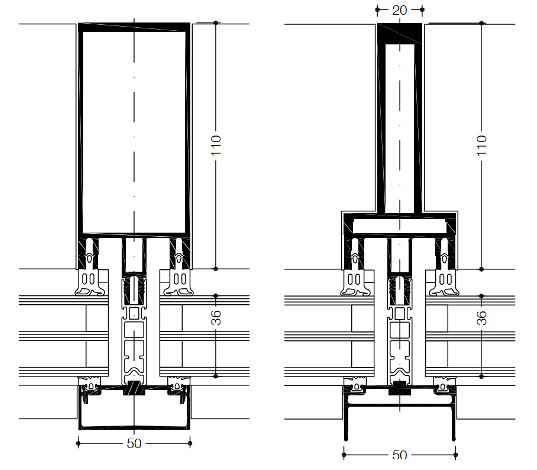

Wicline 50N / 65N sú interiérové dvere ,ktoré sa vyrábajú z prvotriednych materiálov a kovaní pre vysoké zaťaženie. Vďaka patentovaným technológiám spojov je zaručená vysoká tuhosť rámov a krídel. Sú vhodné ako deliace priečky vnútorných priestorov s možnosťou akustických zasklení, ale aj riešenie únikových ciest.
Technológia parametre:
Tepelná izolácia:
Kovanie:
Dodatočné možnosti:
Ventilated facades“ are nowadays increasingly popular not only for aesthetic reasons but also for reasons relating to use. They enhance technical characteristics of buildings and their aesthetics, and their maintenance is simple and user-friendly. Today, we can see many interesting and architecturally unusual buildings around us. Modern design, natural materials, many colours, metallic look, and various shapes – all this is possible today. Even an anti-aesthetical building can be transformed into an architecturally interesting object. This construction system also makes it possible for even more complex facade shapes including rounded surfaces to be coated.
Ventilated coatings are applicable to all types of new buildings, as well as to renovations. Today, their application can be seen on the facades of commercial buildings, offices, blocks of flats, family houses, shopping centres and many more. Besides aesthetics, the main advantages include optimum moisture ratio, long-term lifetime and thermal insulation properties.
Thanks to the air gap, air flow and moisture elimination are ensured. In summer, it prevents overheating because the air flow cools the façade coat. In winter, the thermal insulation ensures, in conjunction with the ventilated air gap, less energy consumption for heating. Application of suitable coatings, and under structures, ensures long-term lifetime.
„Ventilated facades“ are nowadays increasingly popular not only for aesthetic reasons but also for reasons relating to use. They enhance technical characteristics of buildings and their aesthetics, and their maintenance is simple and user-friendly. Today, we can see many interesting and architecturally unusual buildings around us. Modern design, natural materials, many colours, metallic look, and various shapes – all this is possible today. Even an anti-aesthetical building can be transformed into an architecturally interesting object. This construction system also makes it possible for even more complex facade shapes including rounded surfaces to be coated.
Ventilated coatings are applicable to all types of new buildings, as well as to renovations. Today, their application can be seen on the facades of commercial buildings, offices, blocks of flats, family houses, shopping centres and many more. Besides aesthetics, the main advantages include optimum moisture ratio, long-term lifetime and thermal insulation properties.
Thanks to the air gap, air flow and moisture elimination are ensured. In summer, it prevents overheating because the air flow cools the façade coat. In winter, the thermal insulation ensures, in conjunction with the ventilated air gap, less energy consumption for heating. Application of suitable coatings, and under structures, ensures long-term lifetime.
Why WICONA? Because as a successful aluminium systems company based in Germany, WICONA has more than 70 years’ experience – experience from which you can benefit on a daily basis.
State of the art technology and a comprehensive profile range make the aluminium window system WICLINE 65 evo a perfect all- rounder with a versatile spectrum of applications. With a con- struction depth of only 65 mm, this system meets high standards of thermal and sound insulation. WICLINE 65 evo offers a very attractive price / performance ratio.
Profile technology:
Hardware:
Heavy duty system hardware with:
Sash weight:
Thermal insulation:
Gasket concept:
Central gasket in three variants:
Additional designs:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
WICSTYLE 65 evo with its flush leaf design in 65 mm system depth and a comprehensive application range is perfectly quali- fied for the highest demands in design, technological quality and performance. Due to its favourable price/performance ratio it constitutes an economical aluminium door solution for almost any requirement.
Profile technology:
Hardware:
Additional designs:
Vzduchotesnosť | trieda 4 |
---|---|
Odolnosť proti hnanému dažďu | až do 7A |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
WICLINE 75 TOP is a highly thermally insulating window system with optimal performance, reliable fabrication and performance figures at passive house levels – combined with the familiar slim- line appearance of a 75 mm window system.
Profile technology:
Hardware:
Concealed hardware. Optional:
Sash weights:
Thermal insulation:
Gasket concept:
Central gasket in three variants:
Additional designs:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
With a 75 mm profile depth, WICSTYLE 75 evo puts itself ahead in terms of thermal insulation and physical features. Its outstand- ing technical performance and application range make it the ideal door solution for all current and future requirements in architec- ture, both in new buildings and in renovations.
Profile technology:
Hardware:
Additional designs:
Vzduchotesnosť | trieda 4 |
---|---|
Odolnosť proti hnanému dažďu | až do 7A |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
The option “Concealed Sash” in the aluminium window system WICLINE evo features a special glazing bead fixed directly in the thermal break zone. As a result the system achieves an extremely slim frame elevation, superior thermal insulation values and a sleek profile design from outside. The improved ratio between frame and glazing surfaces leads to very good Uw values, in- creased light transmissions and panoramic views.
Profile technology:
Hardware:
Heavy duty system hardware with:
Sash weight:
Thermal insulation:
Gasket concept:
Central gasket in three variants:
Additional designs in concealed sash design:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016.
The new concealed sash of the WICLINE 75 MAX makes the difference between an opening field and a fixed field disappear from the outside. Concealed hinges and fittings, as well as the new concealed handle, ensure clear, uninterrupted lines, also from the inside.
“MAX” stands for top innovation and the triple performance spec- trum of a harmonious appearance, greater light and comfort, and a system containing a high recycled content.
Profile technology:
Profile sightlines:

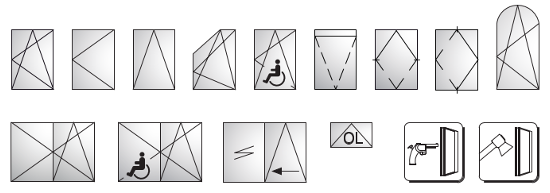

Types of opening:
Thermal insulation:
Profile sightlines:
Additional options:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
System tests / CE-marked product passport according to EN 14351-1:2006+A2:2016
WICLINE 75 TOP is a highly thermally insulating window system with optimal performance, reliable fabrication and performance figures at passive house levels – combined with the familiar slim- line appearance of a 75 mm window system.
Profile technology:
Hardware:
Concealed hardware.
Optional:
Sash weights:
Sash sizes (w x h): up to 1700 mm x 2500 mm, Skylights up to 2500 mm x 1700 mm
Optional opening limiter
Thermal insulation:
Gasket concept:
Central gasket in three variants:
Additional designs:
Vzduchotesnosť | trieda 4 |
---|---|
Vodotesnosť | E900 |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
System tests / CE-marked product passport according to EN 14351-1:2006+A2:2016
Complete system for single- and double-leaf doors, which can be both inward or outward opening. With its smooth rebated cover profile, it doesn‘t just deliver on looks, but its seamless design offers an easy cleaning solution.
Characteristic design using profile covering infills. With this pat- ented solution, WICONA introduces an innovative front door to meet the highest demands of design and energy efficiency. Besides giving the leaf covering the desired visually harmonious effect, this construction also reduces deformation of the doors leaves to a minimum using the bi-metal effect.
Section technology:
Thermal insulation:
Hardware:
Vzduchotesnosť | trieda 4 |
---|---|
Odolnosť proti hnanému dažďu | až do 7A |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči korózii | trieda 5 |
Opakované otváranie / zatváranie | trieda 3 (20 000 cyklov) |
Odolnosť proti vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 S, FB4 NS |
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
The WICSLIDE 160 lifting-sliding system combines excellent thermal insulation with the highest functionality and design. Impressive leaf dimensions and enduring operation comfort are your guarantors for maximum customer satisfaction. With state- of-the-art technology and innovative advantages in fabrication, WICSLIDE 160 is a high-tech product that sets new standards.
Profile technology:
Thermal insulation:
Hardware:
Additional options:
Vzduchotesnosť | trieda 4 |
---|---|
Odolnosť proti hnanému dažďu | až do 7A |
Odolnosť proti zaťaženiu vetrom | trieda C5 / B5 |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
System test results / CE product pass in accordance with EN 14351-1:2006+A2:2016
WICTEC 50 is the basic version of the stick system curtain wall, with an extra-narrow face width of 50 mm, inside and outside. The unique flexibility is demonstrated by the various system variants and enhancement options, all of which are feasible with minor additions to the base system and without compromising on appearance.
System width: 50 mm
Profile depth: 50 mm to 260 mm
Thermal insulation: Uf value up to 0.65 W/(m2K)
Infill thickness: 3 mm to 63 mm
Glass weight: up to 6.0 kN
Polygon façade: up to ±45° (per side = 90° angle)
Roof pitch: up to 10°
System technology:
Additional options in identical design and technical set-up:
Vzduchotesnosť | trieda AE |
---|---|
Vodotesnosť | EW 1200 |
Odolnosť proti zaťaženiu vetrom | 2000/-3200 Pa, bezp. 3000/-4800 Pa |
Vzduchová nepriezvučnosť | 47 (-1; -4) dB |
Odolnosť voči nárazu | trieda E5 /I5 |
Odolnosť voči vlámaniu | RC1N, RC2N, RC2, RC3 |
Nepriestrelnosť | FB4 |
System test results / CE product pass in accordance with DIN EN 13830
The WICLINE 50N/65N aluminium window is ideally suited for build- ings without specific thermal requirements. Ideal as well for the use as NSHEV (Natural Smoke and Heat Exhaust Ventilator).
Profile technology:
Thermal insulation:
Hardware:
Concealed single-handed operated fittings, alternatively with:
Sash weight:
Sash sizes (w x h): 1300 mm x 1700 mm
Additional designs non-insulated:
Stačí vyplniť údaje
Zanechajte nám na Vás kontakt, alebo nám zašlite správu a my Vás budeme kontaktovať pre viac informácií alebo s cenovou ponukou.
